How Gas Insulated Switchgear Enhances Safety in Utility & Data Center Medium Voltage Systems
In today’s evolving power landscape, utilities and data center operators need electrical infrastructure that delivers uncompromised safety, high reliability, and efficient performance under demanding conditions. At the heart of such systems lies medium voltage switchgear, a critical set of equipment designed to control, protect, and monitor power distribution networks. Among the most advanced of these technologies is Gas Insulated Switchgear (GIS) - a modern solution that redefines safety and performance in medium voltage systems.
Meta Power Solutions is proud to offer next-generation, fully gas-insulated metal-enclosed switchgear that meets the exacting demands of modern power systems. In this article, we explore how GIS enhances safety and why it’s an ideal choice for utility substations and data center installations where reliability and compact design matter most.
What Is Gas Insulated Switchgear?
Gas Insulated Switchgear (GIS) is a type of medium voltage switchgear that uses a pressurized insulating gas - typically sulfur hexafluoride (SF6) or equivalent - to surround and protect electrical components. This system is completely sealed within a metal enclosure, creating a compact and highly reliable switching environment.
Unlike traditional air-insulated systems that require larger physical spaces and more frequent environmental maintenance, GIS harnesses the superior electrical properties of gas to provide robust insulation and fault interruption capabilities within a smaller footprint.

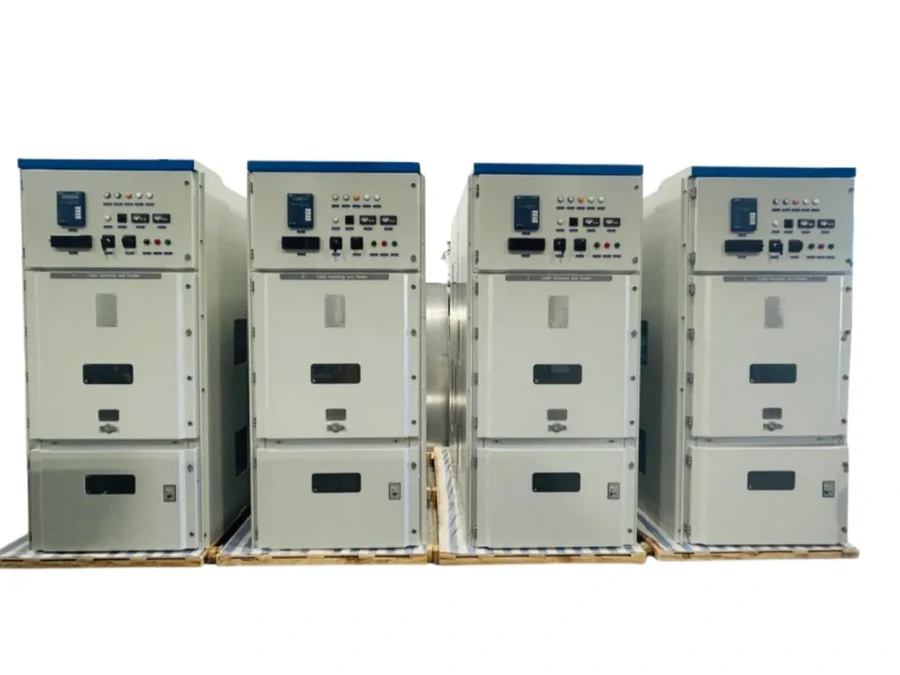

At Meta Power Solutions, our GIS products are part of a modular, highly reliable, compact, and maintenance-free switchgear series with rated voltages up to 40.5 kV - designed for exacting, mission-critical power distribution networks.
Safety Advantages of Gas Insulated Switchgear
Safety is paramount in medium voltage systems, especially in high-demand environments such as utilities and data centers. Gas insulated switchgear offers several inherent safety benefits owed to its design and operational characteristics.
1. Sealed and Protected Electrical Environment
One of GIS’s most significant safety contributions comes from its fully sealed construction. By housing all energized components within a gas-filled, hermetically sealed enclosure, GIS effectively isolates high-voltage components from external environmental influences such as dust, moisture, and airborne contaminants.
This containment minimizes the risk of unintended electrical faults caused by foreign matter, reducing the likelihood of short circuits and other hazardous events. It also limits the potential for accidental contact with live components during operations or inspection.
2. Reduced Risk of Arc-Flash and Fault Propagation
Arc flash events - intense electrical explosions caused by faults - pose serious safety hazards to personnel and equipment. GIS technology is engineered to limit the conditions that can lead to arc faults. The gas insulation delivers high dielectric strength that suppresses unintended discharges and lowers fault propagation risk.
Furthermore, by isolating phases and circuits within a compact enclosure, GIS restricts fault energy propagation, helping ensure that any electrical disturbances are confined and managed without affecting adjacent system components.
3. Enhanced Personnel Safety
For utility engineers and data center technicians, working around medium voltage equipment carries inherent risks. GIS’s sealed environment, combined with metal encapsulation, helps reduce the exposure of personnel to live electrical parts. A tightly enclosed system not only protects internal components but also protects operating personnel during routine inspections or maintenance operations by limiting access to energized elements.
Additionally, gas-sealed switchgear often integrates interlocks and safety mechanisms that prevent unsafe operations, ensuring that doors or panels cannot be opened while compartments are energized.
Why Reliability Matters for Utility and Data Center Systems
In power infrastructure, reliability and safety go hand-in-hand. Equipment that fails under stress not only poses a safety risk but can also disrupt entire systems, leading to downtime, costly repairs, and compromised operational integrity.
Gas insulated switchgear from Meta Power Solutions delivers exceptional reliability due to its robust design:
- Modular and compact construction: GIS units are built as modular blocks, allowing flexible configuration while requiring significantly less floor space than conventional switchgear.
- Sealed enclosures: The protection against environmental influences contributes to consistent long-term performance with fewer failures.
- Reduced maintenance requirements: Since internal components operate in a controlled, gas-filled environment, routine external maintenance is minimized, translating to reduced scheduled outages and lower lifecycle costs.
For power utilities managing grid distribution and data centers with stringent uptime requirements, these reliability factors are essential. A GIS installation ensures stable electrical distribution by decreasing the chances of fault-induced shutdowns or environmental degradation impacting equipment performance.
Compact Design: A Key Advantage in Modern Infrastructure
One of the standout features of gas insulated switchgear is its compact design. Because GIS uses a gas medium with far greater insulating properties than air, the physical space required for electrical separation between components is reduced.
This advantage is particularly meaningful in urban utility substations and data centers where real estate is at a premium. Smaller switchgear footprints mean:
- More efficient use of space in plant rooms and critical infrastructure facilities.
- The ability to integrate GIS in constrained or retrofit installations where traditional air-insulated systems would not fit.
- Easier accommodation of future expansion without extensive infrastructure changes.
Meta Power Solutions’ GIS systems exemplify this compact, modular design approach, enabling flexible deployment in a range of distribution environments - from power stations and industrial facilities to transportation infrastructure and large commercial buildings.
Applications of Gas Insulated Switchgear in Critical Settings
Gas insulated switchgear from Meta Power Solutions is suited for a wide array of applications where safety and reliability are critical.
Utility Substations
In utility grids, GIS serves functions including control, protection, and monitoring of medium voltage distribution systems. Its compact footprint and enhanced safety features make it suitable for urban substations and remote installations alike.
Data Centers
Data centers require electrical infrastructure that supports continuous operation around the clock. A sudden switchgear failure or maintenance issue can disrupt operations and threaten service availability. GIS’s reliability, enclosed safety systems, and low maintenance demand make it a strong fit for high-availability data center power distribution.
Industrial and Commercial Installations
Beyond utilities and data centers, GIS is deployed in industrial enterprises, mining operations, rail and infrastructure projects, and high-rise commercial buildings - any context where space is limited and safety performance cannot be compromised.
Complementary Benefits with Enclosed Switchgear and Maintenance Best Practices
While gas insulated switchgear provides a high level of safety and reliability, it also performs optimally when integrated with thoughtful switchgear maintenance strategies and enclosed system designs.
An enclosed system not only protects internal components but also simplifies safety compliance and physical protection against tampering or environmental hazards. When paired with proper maintenance - such as scheduled gas checks, routine inspections, and diagnostic testing - GIS can deliver decades of trouble-free service.
Meta Power Solutions emphasizes quality and engineering excellence in every switchgear product. Our GIS series is designed to meet rigorous performance standards and is built to withstand the demands of modern medium voltage applications.
Final Thoughts
Gas insulated switchgear represents a significant advancement in medium voltage power distribution, bringing together safety, reliability, and compact design into one high-performance solution. For utility engineers and data center planners tasked with building robust electrical infrastructure, GIS delivers measurable benefits:
- Enhanced electrical and personnel safety through sealed, gas-filled enclosures.
- Reduced maintenance needs and improved system uptime.
- Compact modular designs that fit the physical constraints of modern facilities.
- Operational reliability that aligns with continuous service expectations.
Meta Power Solutions continues to push the boundaries of medium voltage technology with its fully gas-insulated metal-enclosed switchgear - offering tailored systems that meet the unique needs of utilities, data centers, and industrial installations. Discover how our GIS solutions can elevate the safety and performance of your power distribution systems by contacting our experts or exploring our product catalog today.
Frequently Asked Questions
Q: What is gas insulated switchgear?
Gas insulated switchgear is a type of medium voltage switchgear that uses insulating gas within a sealed enclosure to safely control and distribute electrical power.
Q: Why is gas insulated switchgear used in medium voltage systems?
Gas insulated switchgear is used in medium voltage systems to enhance safety, improve reliability, and reduce the physical space required for electrical equipment.
Q: How does gas insulated switchgear improve safety?
It improves safety by enclosing live components in a gas-filled, metal-sealed system that minimizes exposure to electrical faults and environmental contaminants.
Q: Where is gas insulated switchgear commonly installed?
Gas insulated switchgear is commonly installed in utility substations, data centers, industrial facilities, and other environments with high power demand and space constraints.
Q: Does gas insulated switchgear require regular maintenance?
Gas insulated switchgear generally requires less frequent maintenance compared to air-insulated systems due to its sealed design and controlled internal environment.
