Product Overview

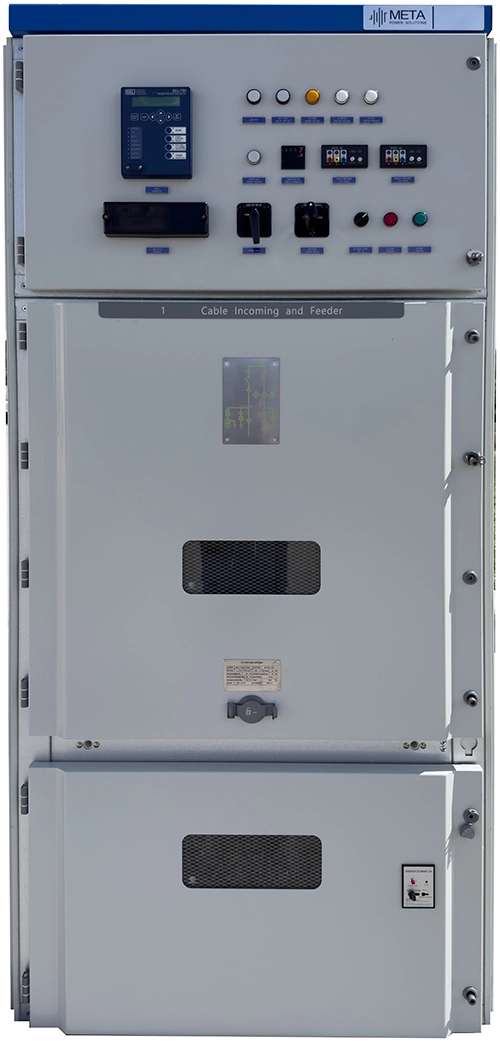

Medium Voltage Switchgear

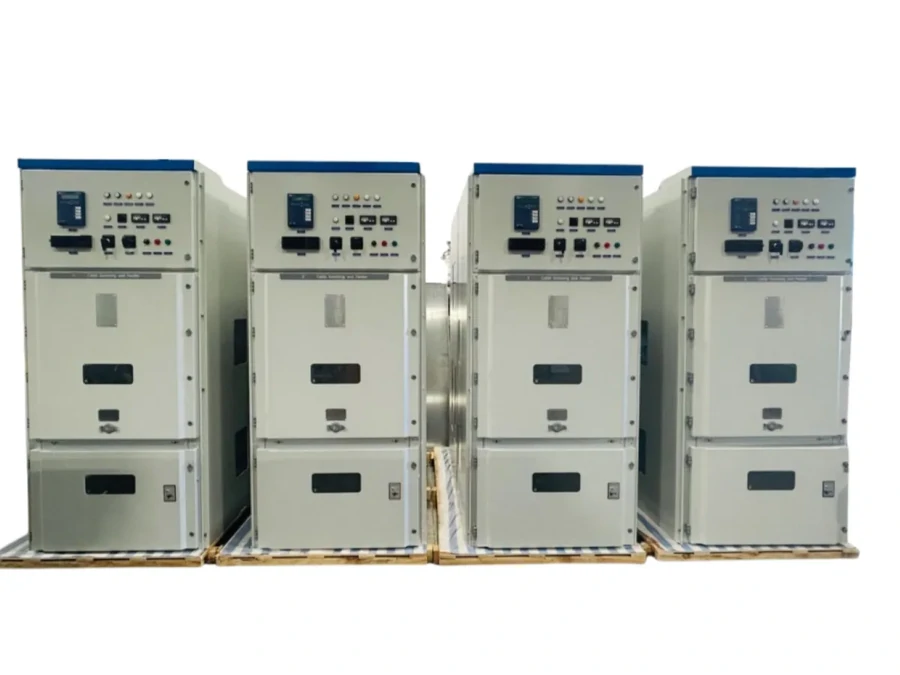

The series fully gas-insulated metal-enclosed switchgear (hereinafter referred to as “GIS”) is a new generation of modular, highly reliable, compact and maintenance-free gas-insulated switchgear. It is mainly used in power stations, subways, high-rise buildings, industrial and mining enterprises and other power distribution systems to control, protect and monitor the power supply system and load.
Rated Voltage
40.5 kV
Rated Frequency
50 Hz
Rated Current
630/1250/1600/2000/2500 A
Width
600/800 mm
ManualTechnical Specs
Rated Voltage
40.5 kV
Rated Frequency
50 Hz
Rated Current
630/1250/1600/2000/2500 A
Rated short-time power frequency withstand voltage Phase-to-phase and phase-to-earth
95 kV
Rated short-time power frequency withstand voltage Disconnector break
118 kV
Rated lightning impulse withstand voltage Phase-to-phase and phase-to-earth
185 kV
Rated lightning impulse withstand voltage Disconnector break
215 kV
Power frequency withstand voltage of control and auxiliary circuits (1 min)
2 kV
Rated short-time withstand current/duration Main Circuit
25/31.5 kA/s
Rated short-time withstand current/duration Earthing Switch
25(31.5)/4 kA/s
Rated short-time withstand current/duration Earthing Circuit
21.7(27.4)/4 kA/s
Rated peak withstand current Main Circuit
63/80 kA
Rated peak withstand current Earthing Switch
63/80 kA
Rated short-circuit breaking current
25/31.5 kA
Rated short-circuit making current
63/80 kA
Rated operation sequence
O-0.3s-CO-180s-CO
Out-phase earthing fault current
21.4 kA
Rated cable-charging breaking current
31.5 A
Rated supply voltage of auxiliary circuit
AC220
Rated supply voltage of control circuit
DC110/DC220
Mechanical life Circuit breaker
10000
Mechanical life Disconnector
3000
Mechanical life Earthing switch
3000
Rated inflation pressure of SF6 gas (20°C, gauge pressure)
0.04 MPa
Minimum functional horizontal pressure of SF6 gas (20°C, gauge pressure)
0.02 MPa
Moisture content of SF6 gas (V/V)
≤150 μL/L
SF6 gas leakage rate
≤0.01%
Width
600/800 mm
Depth
1760 mm
Height
2400 mm
Applications
Schools
Hospitals
Water Treatment
Food & Beverage
Solar
