Everything You Need to Know About Low Voltage Switchboards for Industrial & Data Center Applications
In today’s high-demand industrial and data center environments, power reliability and safety aren’t just operational priorities - they’re mission-critical. At the heart of dependable electrical distribution lies the low voltage switchboard - a core component that ensures power is delivered, protected, and managed effectively. In this comprehensive guide, Meta Power Solutions breaks down everything you need to understand about low voltage switchboards, from their types and technical specs to installation best practices and real-world applications.
What Is a Low Voltage Switchboard?

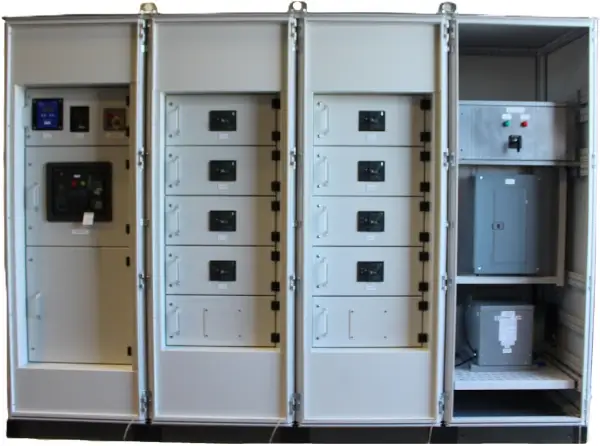

A low voltage switchboard is a large, freestanding electrical distribution assembly designed to safely route and control electrical power at voltages up to 800 V AC. Unlike smaller panelboards, switchboards are built to handle higher current loads, integrate protective devices, and support multiple circuits in industrial, commercial, and data center settings.
Switchboards serve as the central hub of low-voltage distribution, housing critical components such as busbars, overcurrent protective devices (like circuit breakers and fuses), metering instruments, and control equipment. Their modular construction enables flexible configuration based on specific project needs.
Types of Low Voltage Switchboards
Meta Power Solutions offers a wide range of low voltage switchboards tailored to various continuous current ratings and application requirements. These include:
800 A Low Voltage Switchboard
Designed for moderate load environments where space efficiency and reliable protection are required.
1200 A, 1600 A & 2000 A Switchboards
Mid-range capacity units ideal for larger industrial facilities and data hubs requiring robust power distribution.
2500 A, 3200 A & 4000 A Switchboards
High-capacity solutions suited for data centers, manufacturing plants, and mission-critical infrastructure where higher current delivery and increased fault interrupting capacity are essential.
All switchboards from Meta Power Solutions are engineered for rated voltages up to 800 V and interrupting capacities up to 100 kA, using copper or aluminum busbars to ensure durability and performance.
Key Components & Technical Specifications
Understanding the critical elements of a low voltage switchboard helps facility planners and engineers choose the right system for their infrastructure.
Switchboard Structure
A typical switchboard consists of:
- Frame: The robust metal skeleton that holds all components.
- Busbars: Heavy-duty copper or aluminum conductors distributing power within the board.
- Protective Devices: Circuit breakers and switches for safety and fault control.
- Meters & Monitoring: Microprocessor-based metering, voltage/current transformers, and utility metering provisions.
- Enclosures: NEMA-rated indoor and outdoor cabinets for environmental protection.
Protection & Breakers
Meta Power Solutions switchboards incorporate a range of protective devices to ensure system safety and reliability:
- Air Circuit Breakers (ACBs)
- Power Circuit Breakers (PCBs)
- Molded Case Circuit Breakers (MCCBs)
- Surge Protection Devices (SPDs)
- Fusible Switches
Circuit breakers can be fixed or draw-out type to support maintenance and operational flexibility.
Monitoring & Control
Advanced metering solutions allow real-time monitoring of electrical parameters, enabling informed operational decisions and integration with building management systems.
Installation Best Practices
Correct installation ensures that your low voltage switchboard performs reliably under load and maintains safety throughout its lifecycle.
Site Assessment Before Installation
- Conduct a detailed load study to understand the power distribution needs.
- Validate cable entry and exit pathways and clearances for safety and future maintenance.
- Ensure the planned mounting location offers sufficient ventilation and access.
Follow Safety & Compliance Standards
Installation should strictly adhere to local regulations, NEC codes, and UL standards - including UL-891 for switchboards - to ensure compliance and safety.
Grounding & Bonding
Proper grounding paths are critical in data centers and industrial environments where sensitive electronic equipment may be susceptible to transient faults or power disturbances.
Integration with Other Power Systems
Switchboards often interface with transformers, generators, UPS systems, and protective relays. Coordinated protection ensures that faults on upstream or downstream equipment don’t propagate and cause wider outages.
Maintenance & Long-Term Reliability
A well-maintained low voltage switchboard can dramatically reduce unplanned outages and extend operational life.
Routine Inspection
- Inspect for signs of wear, corrosion, or overheating.
- Verify torque on bus connections and inspect protective devices for age-related degradation.
Testing & Calibration
- Periodic testing of protective relays and circuit breakers ensures they operate within specified trip settings.
- Calibration of metering devices maintains accurate performance readings.
Cleaning & Environmental Control
Dust and contaminants can lead to poor electrical connections or false tripping. Ensure that the installation environment remains clean and free from excessive humidity.
Applications: Where Low Voltage Switchboards Make an Impact
Low voltage switchboards are essential in environments where continuous, reliable power is non-negotiable:
Data Centers
These facilities demand high-availability power distribution to safeguard servers and networking gear. Switchboards provide scalable power routing and protection for high-density loads.
Industrial Plants
Manufacturing floors and processing facilities use switchboards for safe power distribution to heavy machinery, HVAC systems, and automation equipment.
Commercial Buildings
From office complexes to retail centers, switchboards ensure consistent electrical delivery and protection across multiple floors and power zones.
Institutional Infrastructure
Hospitals, schools, water treatment plants, and entertainment venues benefit from switchboards’ modular design and scalability.
Why Choose Meta Power Solutions?
Meta Power Solutions designs and manufactures low voltage switchboards with flexibility, reliability, and performance at their core. Key differentiators include:
Customizable Designs
Switchboards are built from scratch based on customer requirements to ensure optimal performance in your specific application.
Modular & Space-Efficient Construction
The modular approach allows easier configuration, upgrade, and space optimization - ideal for data centers and industrial plant layouts.
High Standards & Compliance
All products are designed to comply with UL and NEC standards and use high-quality, approved switchgear and control equipment.
Rigorous Testing & Quality Assurance
Every switchboard undergoes strict development, testing, and inspection procedures to guarantee performance and reliability.
Collaborative Engineering
MPS takes a collaborative approach - involving end users, consultants, and contractors in the design process to ensure technical suitability for each project.
Final Thoughts
For data center engineers, facility managers, and utility planners, a properly specified and installed low voltage switchboard is foundational to electrical distribution success. From scalable capacities and advanced protective technologies to modular designs and rigorous compliance standards, choosing the right switchboard can improve performance, safety, and uptime across your critical infrastructure.
Meta Power Solutions stands ready to partner with your team to deliver tailored switchboard solutions that align with your power distribution goals. Whether you need a mid-range 1200 A unit or a high-capacity 4000 A main electric switch board, our expert engineering and dedicated support ensure you get the solution that meets your needs - reliably and efficiently. Contact Meta Power Solutions today to discuss your low voltage switchboard requirements and get expert guidance for your industrial or data center application.
Frequently Asked Questions
Q: What is a low voltage switchboard?
A low voltage switchboard is an electrical distribution assembly designed to control, protect, and distribute power at voltages up to 800V.
Q: What current ratings are available for Meta Power Solutions switchboards?
Meta Power Solutions offers low voltage switchboards ranging from 800A to 4000A to support various industrial and data center loads.
Q: What type of breakers can be used in these switchboards?
The switchboards can be configured with air circuit breakers, power circuit breakers, molded case circuit breakers, and fusible switches.
Q: Are Meta Power Solutions switchboards customizable?
Yes, switchboards are custom-engineered based on project requirements, including bus material, breaker configuration, and metering options.
Q: What standards do Meta Power Solutions low voltage switchboards comply with?
They are designed in accordance with applicable UL, NEC, IEEE, and ANSI standards for safety and performance.
